Hydraulic Motors & Brakes

Hydraulic motors are rotary actuators that convert hydraulic energy into mechanical power. They provide force and supply motion to move an external load. Hidros provide complete line of low speed, high torque motors for agricultural and mobile application

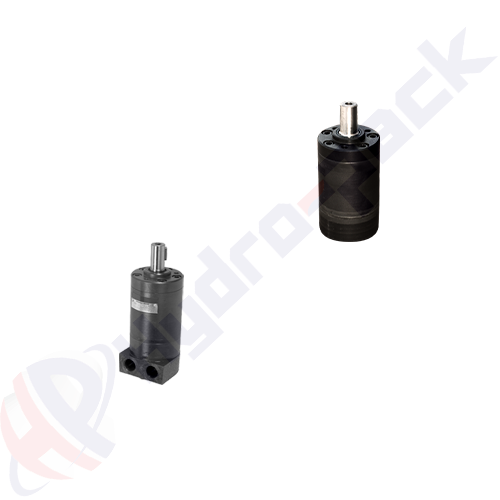

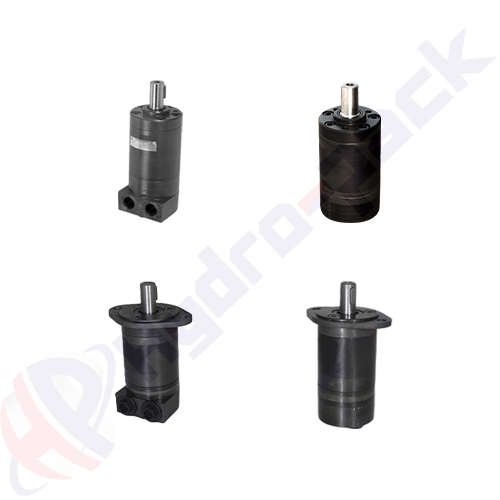

MM Series Hydraulic Motors

Max.displacement: Up to 50 cc/rev
Max.torque: 4.5 daNm (Cont. operation)
Max.output power: 3.2 kW
Max.pressure drop: 105 bar (Cont. operation)
Max.oil flow: 25 liter/min
Min.speed: 20 rpm

MP Series Hydraulic Motors

Max.displacement: Up to 623.6 cc/rev
Max.torque: 50 daNm (Cont. operation)
Max.output power: 12.8 kW
Max.pressure drop: 140 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

MR Series Hydraulic Motors

Max.displacement: Up to 397 cc/rev
Max.torque: 61 daNm (Cont. operation)
Max.output power: 15 kW
Max.pressure drop: 175 bar (Cont. operation)
Min.speed: 10 rpm

MH Series Hydraulic Motors

Max.displacement: Up to 502.4 cc/rev
Max.torque: 84 daNm (Cont. operation)
Max.output power: 18.5 kW
Max.pressure drop: 175 bar (Cont. operation)
Max.oil flow: 90 liter/min
Min.speed: 5 rpm

MS Series Hydraulic Motors

Max.displacement: Up to 564.9 cc/rev
Max.torque: 85 daNm (Cont. operation)
Max.output power: 23 kW
Max.pressure drop: 210 bar (Cont. operation)
Max.oil flow: 90 liter/min
Min.speed: 5 rpm

MT Series Hydraulic Motors

Max.displacement: Up to 724.3 cc/rev
Max.torque: 130 daNm (Cont. operation)
Max.output power: 40 kW
Max.pressure drop: 200 bar (Cont. operation)
Max.oil flow: 150 liter/min
Min.speed: 5 rpm

MV Series Hydraulic Motors

Max.displacement: Up to 801.8 cc/rev
Max.torque: 188 daNm (Cont. operation),
Max.output power: 64 kW
Max.pressure drop: 200 bar (Cont. operation)
Max.oil flow: 240 liter/min
Min.speed: 5 rpm

RK Series Hydraulic Motors

Max.displacement: Up to 397 cc/rev
Max.torque: 40 daNm (Cont. operation)
Max.output power: 12,8 kW
Max.pressure drop: 140 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min. speed: 10 rpm

RL Series Hydraulic Motors

Max.displacement: Up to 397 cc/rev
Max. torque: 61 daNm (Cont. operation)
Max.output power: 16 kW
Max.pressure drop: 175 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

MRB Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

HW Series Hydraulic Motors

Max.displacement: Up to 550 cc/rev
Max.torque: 96 daNm (Cont. operation)
Max.output power: 23.1 kW
Max.pressure drop: 105 bar (Cont. operation)
Max.oil flow: 115 liter/min
Min.speed: 10 rpm

PK Series Hydraulic Motors

Max.displacement: Up to 396 cc/rev
Max.torque: 41 daNm (Cont. operation)
Max.output power: 8.6 kW
Max.pressure drop: 105 bar (Cont. operation)
Max.oil flow: 50 liter/min
Min.speed: 10 rpm

PL Series Hydraulic Motors

Max.displacement: Up to 396 cc/rev
Max.torque: 50 daNm (Cont. operation)
Max.output power: 17.5 kW
Max.pressure drop: 140 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

RW Series Hydraulic Motors

Max.displacement: Up to 397 cc/rev
Max.torque: 61 daNm (Cont. operation)
Max.output power: 15 kW
Max.pressure drop: 175 bar (Cont. operation)
Max.oil flow: 90 liter/min
Min.speed: 10 rpm

TMF Series Hydraulic Motors

Max.displacement: Up to 724.3 cc/rev
Max.torque: 175 daNm (Cont. operation)
Max.output power: 70 kW
Max.pressure drop: 250 bar (Cont. operation)
Max.oil flow: 150 liter/min
Min.speed: 5 rpm

VMF Series Hydraulic Motors

Max.displacement: Up to 801.8 cc/rev
Max.torque: 259 daNm (Cont. operation)
Max.output power: 112 kW
Max.pressure drop: 250 bar (Cont. operation)
Max.oil flow: 240 liter/min
Min.speed: 5 rpm

MTK Series Hydraulic Motors

Max.displacement: Up to 502 cc/rev
Max.torque: 109 daNm (Cont. operation)
Max.output power: 22 kW
Max.pressure drop: 250 bar (Cont. operation)
Max.oil flow: 80 liter/min
Min.speed: 5 rpm

MTM Series Hydraulic Motors

Max.displacement: Up to 724 cc/rev
Max.torque: 183 daNm (Cont. operation)
Max.output power: 70 kW
Max.pressure drop: 250 bar (Cont. operation)
Max.oil flow: 150 liter/min
Min.speed: 5 rpm

MVM Series Hydraulic Motors

Max.displacement: Up to 801.8 cc/rev
Max.torque: 259 daNm (Cont. operation)
Max.output power: 112 kW
Max.pressure drop: 250 bar (Cont. operation)
Max.oil flow: 240 liter/min
Min. speed: 5 rpm

MSY Series Hydraulic Motors

Max.displacement: Up to 475 cc/rev
Max.torque: 92 daNm (Cont. operation)
Max.output power: 21.5 kW
Max.pressure drop: 200 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 5 rpm

MLHM Series Hydraulic Motors

Max.displacement: Up to 50 cc/rev
Max.torque: 4.5 daNm (Cont. operation)
Max.output power: 3.2 kW
Max.pressure drop: 105 bar (Cont. operation)
Max.oil flow: 25 liter/min
Min.speed: 20 rpm

MLHR Series Hydraulic Motors

Max.displacement: Up to 397 cc/rev
Max.torque: 61 daNm (Cont. operation)
Max.output power: 15 kW
Max.pressure drop: 175 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

MLHH Series Hydraulic Motors

Max.displacement: Up to 502 cc/rev
Max.torque: 84 daNm (Cont. operation)
Max.output power: 18.5 kW
Max.pressure drop: 175 bar (Cont. operation)
Max.oil flow: 90 liter/min
Min.speed: 5 rpm

MLHS Series Hydraulic Motors

Max.displacement: Up to 565 cc/rev
Max.torque: 85 daNm (Cont. operation)
Max.output power: 23 kW
Max.pressure drop: 210 bar (Cont. operation)
Max.oil flow: 90 liter/min
Min.speed: 5 rpm

MLHT Series Hydraulic Motors

Max.displacement: Up to 724 cc/rev
Max.torque: 130 daNm (Cont. operation)
Max.output power: 40 kW
Max.pressure drop: 200 bar (Cont. operation)
Max.oil flow: 150 liter/min
Min.speed: 5 rpm

HP Series Hydraulic Motors

Max.displacement: Up to 396 cc/rev
Max.torque: 41 daNm (Cont. operation)
Max.output power: 12 kW
Max.pressure drop: 125 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

HR Series Hydraulic Motors

Max.displacement: Up to 386 cc/rev
Max.torque: 45 daNm (Cont. operation)
Max.output power: 12 kW
Max.pressure drop: 140 bar (Cont. operation)
Max.oil flow: 75 liter/min
Min.speed: 10 rpm

LB Series Hydraulic Disc Brakes

LB series disc brakes are assembled directly on motor output shafts. The brakes can be connected to MP, MR, MS, MSS, MSV, MTS and MTV series hydraulic motors.

B/TPC Series Hydraulic Disc Brakes

Static torque: Up to 85 daNm
Max. pressure: 240 bar
Max. speed: 60 rpm

B/MR Series Hydraulic Motor Brakes

Max.displacement: Up to 397 cc/rev
Max.torque: 61 daNm (Cont. operation)
Max.output power: 14.5 kW
Max.pressure drop: 175 bar (Cont. operation)
Max flow oil:

B/RW Series Hydraulic Motor Brakes

Product information content is still being updated. Please feel free to contact us for further information.

MT/B Series Hydraulic Motor Brakes

Product information content is still being updated. Please feel free to contact us for further information.

MTM/B Series Hydraulic Motor Brakes

Product information content is still being updated. Please feel free to contact us for further information.

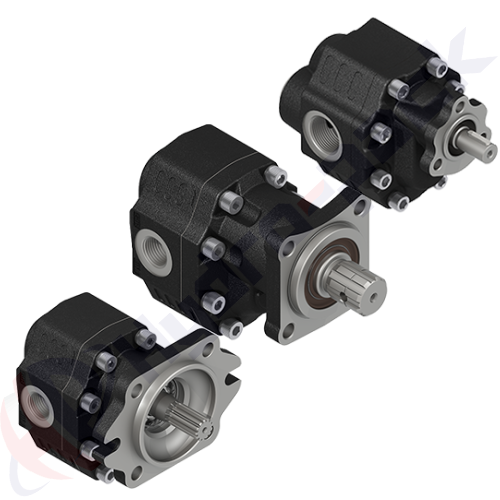

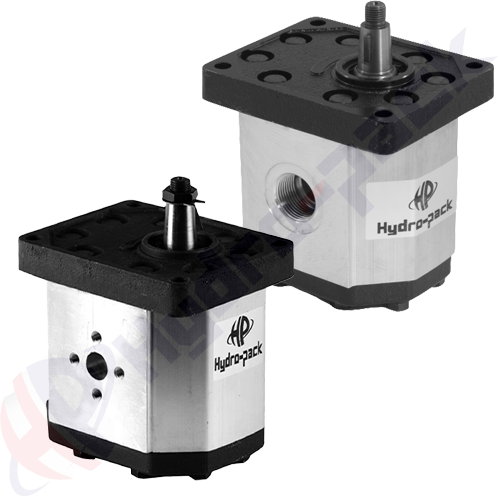

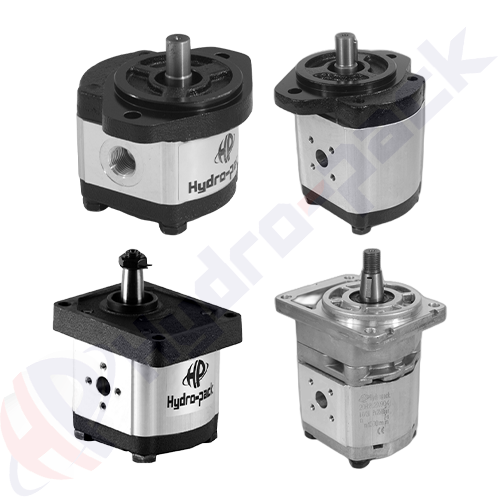

Group 20 Hydraulic Gear Motors

Max.displacement: Up to 25 cc/rev
Max.pressure: Up to 200 bar
Speed range: From 650 rpm up to 3500 rpm

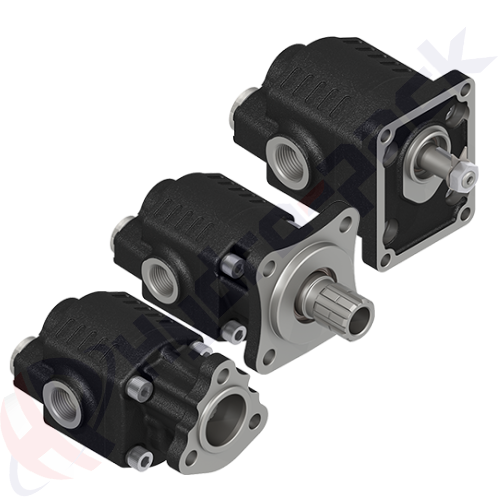

Group 30 Hydraulic Gear Motors

Max.displacement: Up to 60 cc/rev
Max.pressure: Up to 200 bar
Speed range: From 500 rpm up to 2500 rpm

Group 30 Cast Iron Gear Motors

Product information content is still being updated. Please feel free to contact us for further information.

Piston Motors

Product information content is still being updated. Please feel free to contact us for further information.

Radial Piston Motors

Max.displacement: Up to 995 cc/rev
Max.torque: 2624 Nm (Cont. operation)
Max.pressure drop: 240 bar (Cont. operation)
Max.speed range: 30 - 350 rpm

ZBMM Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

ZBMP Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

ZBMR Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

ZBMH Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

ZBMS Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.

ZBMT Series Hydraulic Motors

Product information content is still being updated. Please feel free to contact us for further information.
