Directional Control Valves

test deneme aaa Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system. Hidros provide monoblock, sectional, solenoid operated spool type control valves with differen

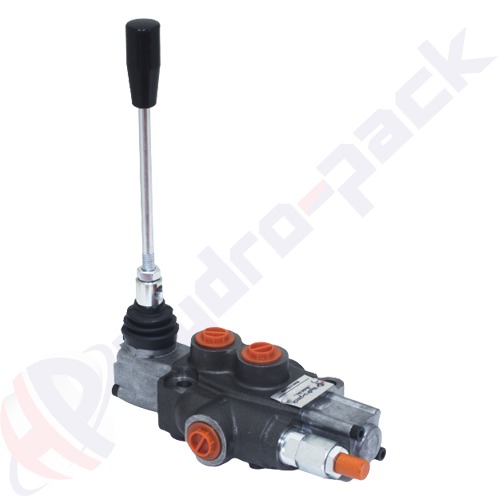

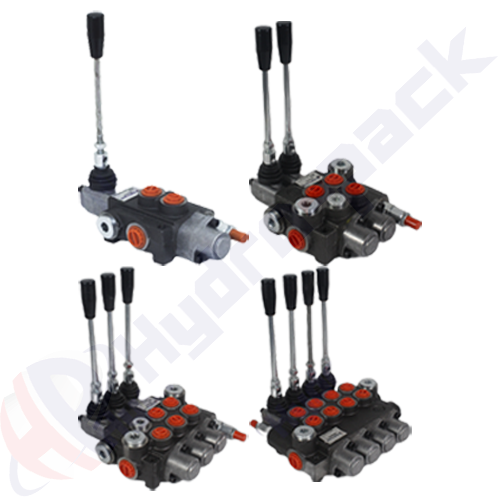

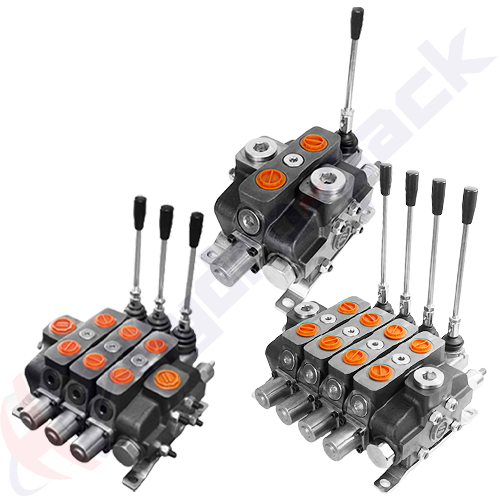

Z50 Series Monoblock Control Valves

Nominal flow rate: 50 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 7
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC


Z80 Series Monoblock Control Valves

Nominal flow rate: 80 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 4
Leakage: 6 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil

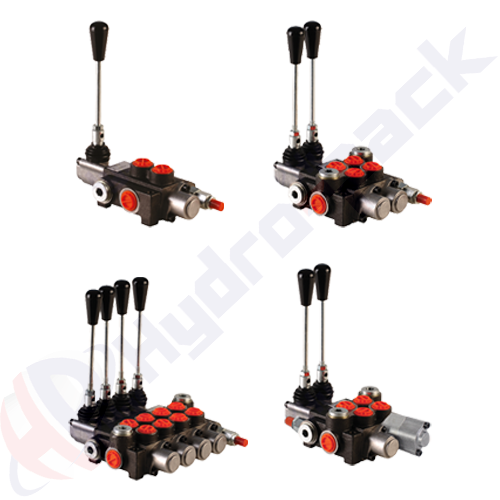

P120 Series Monoblock Control Valves

Nominal flow rate: 120 liter/min
Max. Pressure: P: 250 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 4
Leakage: 8 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

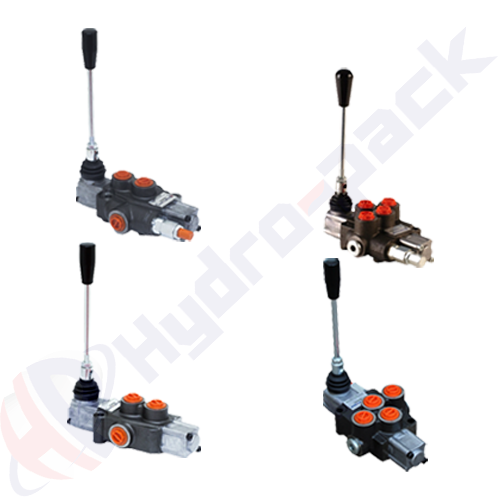

P35 Series Monoblock Control Valves

Nominal flow rate: 35 liter/min
Max. Pressure: P: 250 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: Single lever
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

P38 Series Monoblock Control Valves

Nominal flow rate: 35 liter/min
Max. Pressure: P: 250 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: Single lever
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

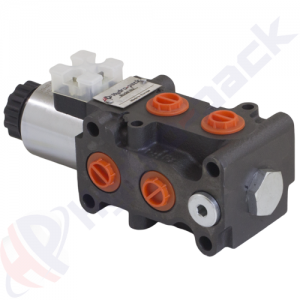

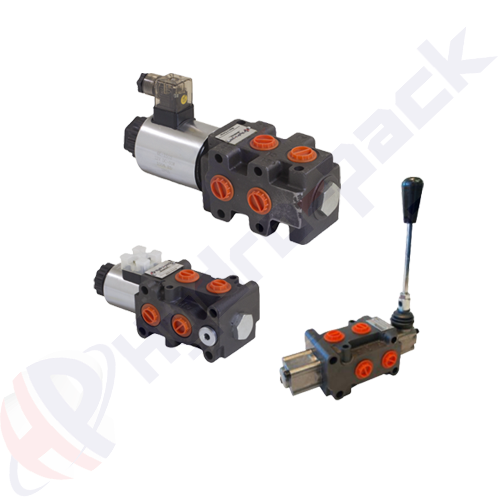

DVS6 Series Solenoid Operated Diverter Valves

Nominal flow rate: 50 liter/min
Max. Pressure: 315 bar, without drain line 210 bar
Voltage: 12/24 V DC

SVV90 Series Solenoid Operated Diverter Valves

Nominal flow rate: 90 liter/min
Max. Pressure: 280 bar
Voltage: 12/24 V DC

Log Splitter Valves

Nominal flow rate: 80 liter/min
Max. Pressure: P: 250 bar, T: 10 bar, A-B: 300 bar

  • Spools with 3 and 4 positions
  • Widely used for log splitters

P40 Series Monoblock Control Valves

Nominal flow rate: 40 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 7
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

P80 Series Monoblock Control Valves

Nominal flow rate: 80 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 6
Leakage: 6 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

PK80 Series Monoblock Control Valves

Nominal flow rate: 80 liter/min
Max. Pressure: P: 250 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 6
Leakage: 18 cm3/min at 120 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

  • With automatic kickout function


S290 Series Monoblock Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

PC45 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

PC70 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

PC100 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

KS180 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

Z50 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

Z80 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

P120 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

P40 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

P80 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

PC70 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

PC100 Electrohydraulic Valves

Product information content is still being updated. Please feel free to contact us for further information.

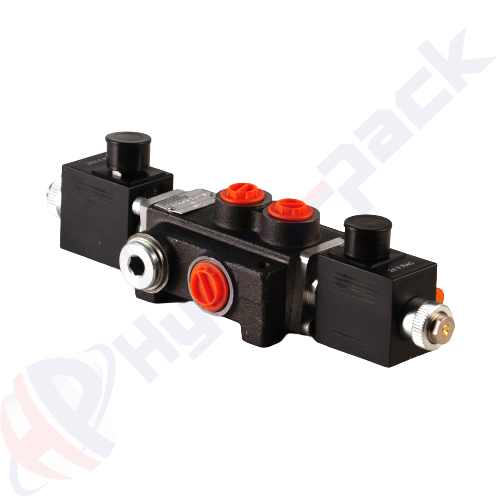

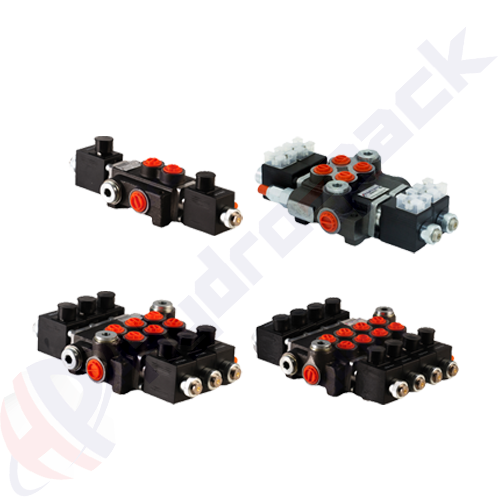

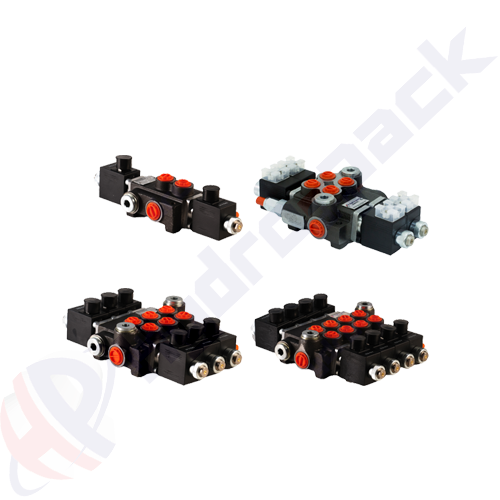

Z50 Series Solenoid Operated Control Valves

Nominal flow rate: 50 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 7
Leakage: 18 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC

  • On-off control
  • 12/24 V voltage options

Z80 Series Solenoid Operated Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

ZC70 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

ZC100 Series Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

Special Directional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

PF40 Series Monoblock Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

SV80 Series

Product information content is still being updated. Please feel free to contact us for further information.

SV120 Series

Product information content is still being updated. Please feel free to contact us for further information.

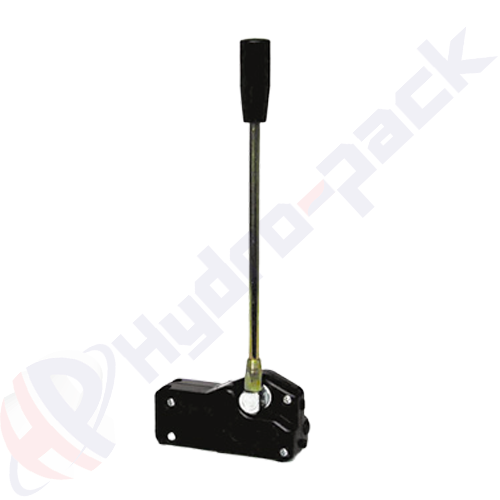

Single Levers

Product information content is still being updated. Please feel free to contact us for further information.

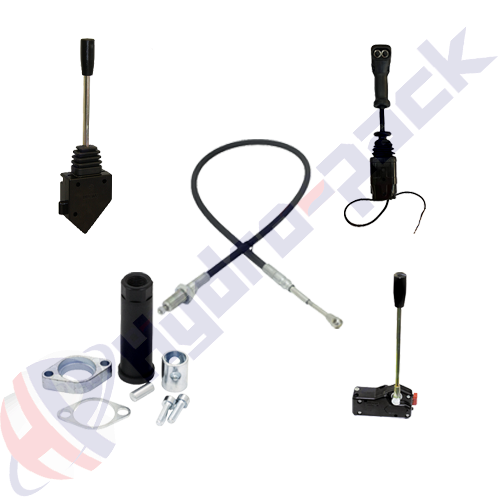

Joystick and Cable Controls

Product information content is still being updated. Please feel free to contact us for further information.

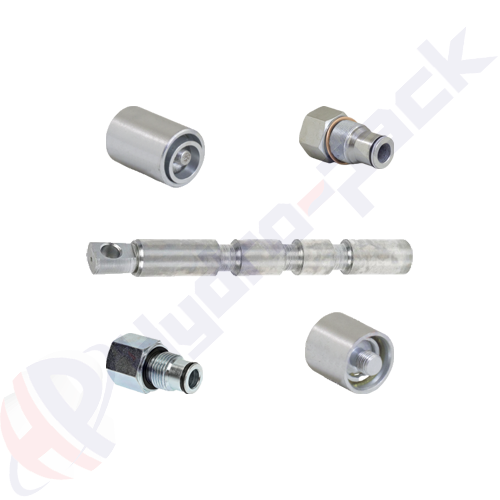

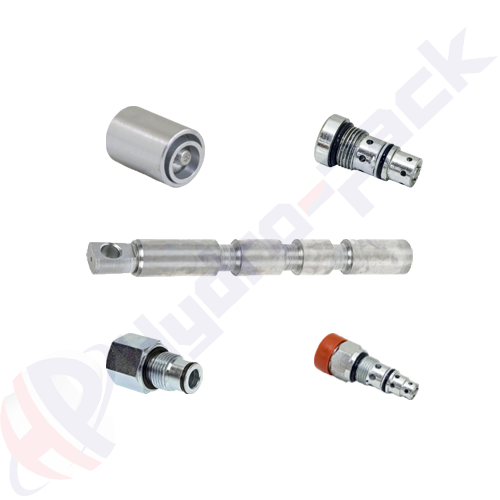

Monoblock Valve Spare Parts

Product information content is still being updated. Please feel free to contact us for further information.

Sectional Valve Spare Parts

Product information content is still being updated. Please feel free to contact us for further information.

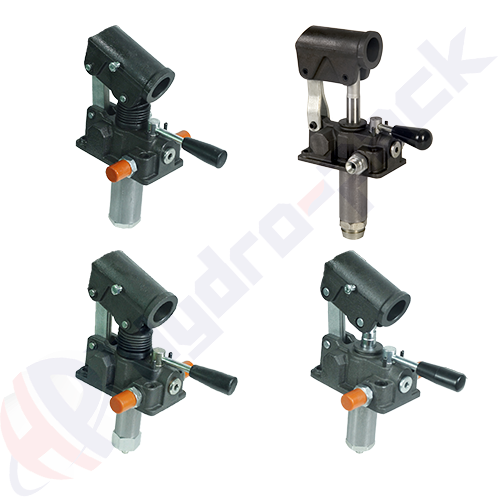

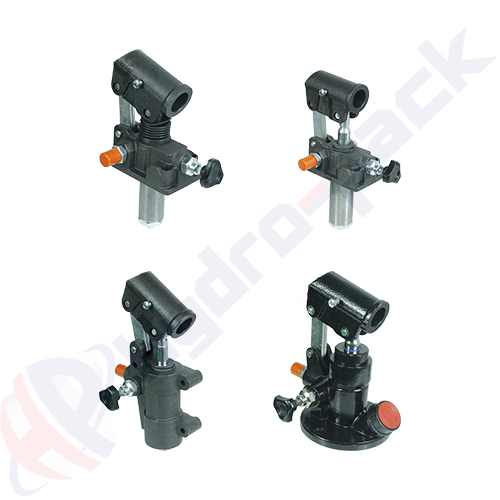

Single Acting Hand Pumps

Product information content is still being updated. Please feel free to contact us for further information.

Double Acting Hand Pumps

Product information content is still being updated. Please feel free to contact us for further information.

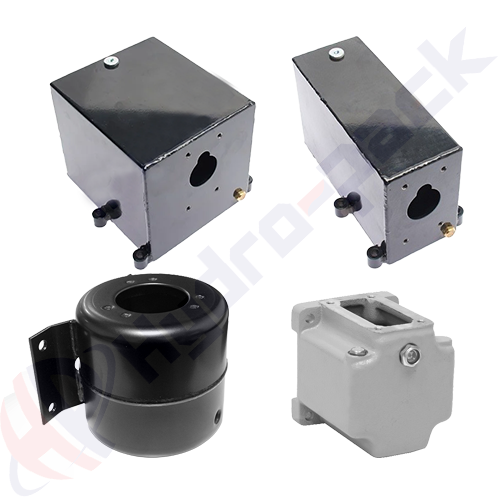

Hand Pump Oil Tanks

Product information content is still being updated. Please feel free to contact us for further information.

P140 Series Monoblock Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

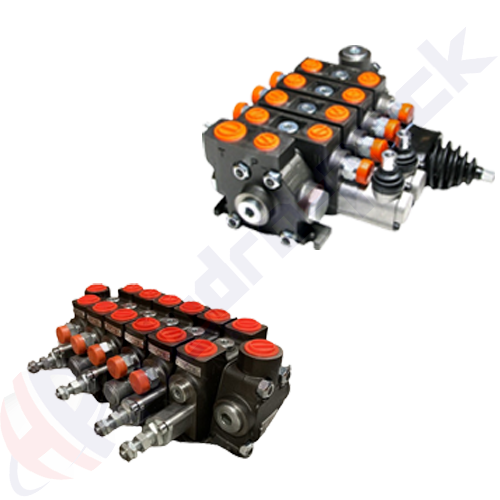

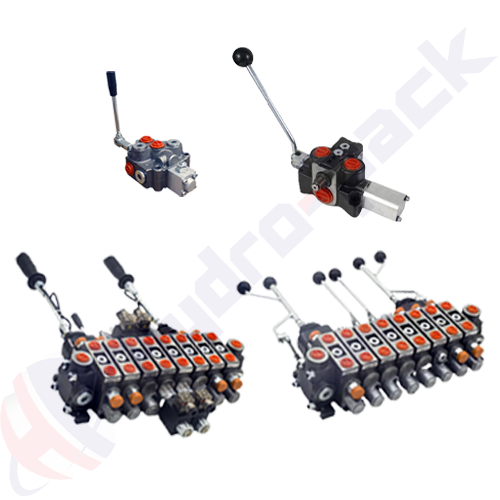

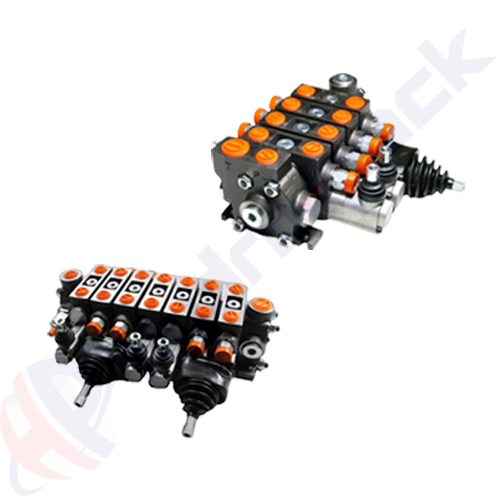

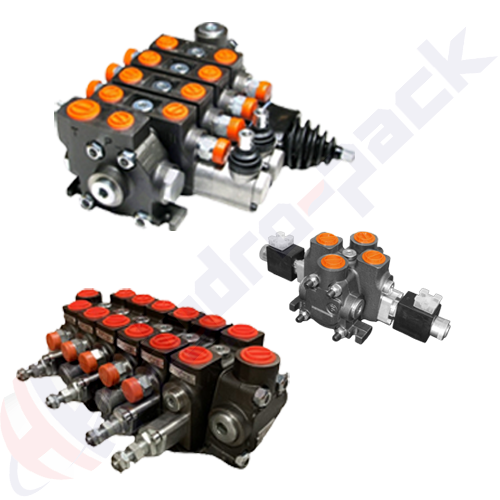

Sectional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.

Electrohydraulic Directional Control Valves

Product information content is still being updated. Please feel free to contact us for further information.
