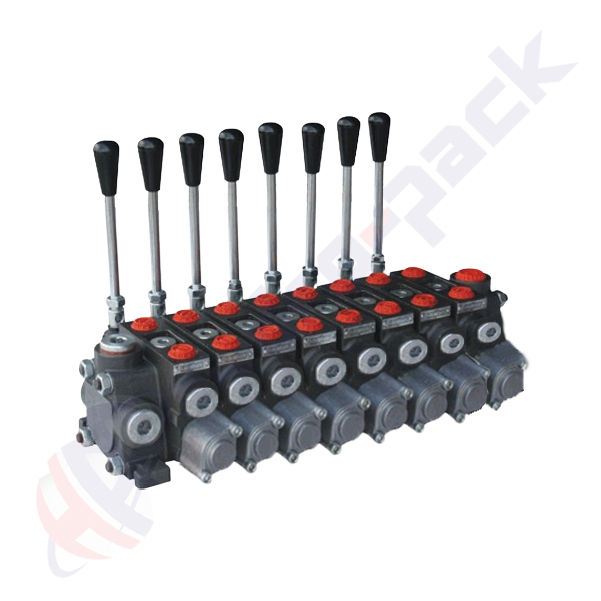

The ZC70 Series Sectional Directional Control Valves offer a flow rate of 70 liters/min and a max pressure of 250 bar (T: 50 bar, A-B: 300 bar). Featuring a standard open center spool (A spool) with various spool options, these valves come in 1 to 8 spool configurations and provide leakage of 20-40 cm³/min at 120 bar. They operate on 12 V or 24 V DC, within a fluid temperature range of -10°C to +80°C, using mineral-based hydraulic oil (10-100 cSt, ideally 46 cSt), and include filtration of 10 to NAS 1638. Ideal for versatile hydraulic applications.
