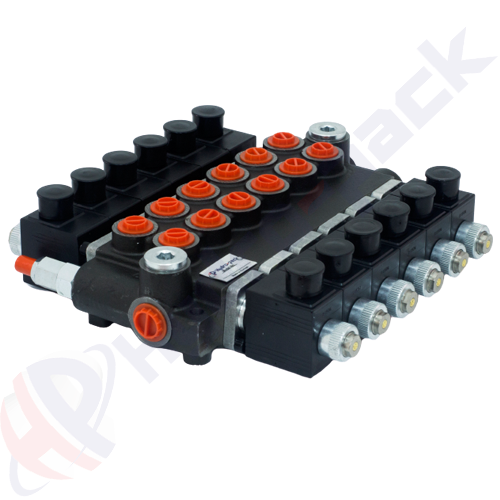

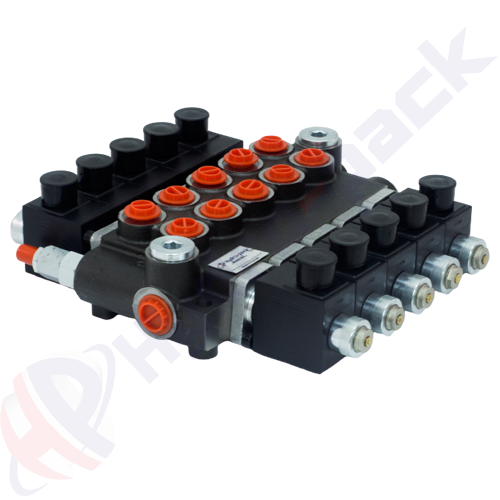

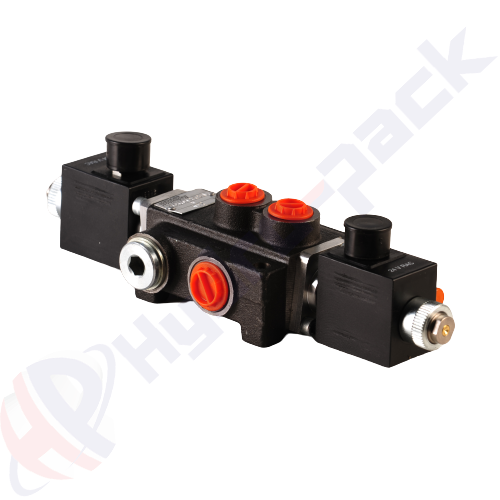

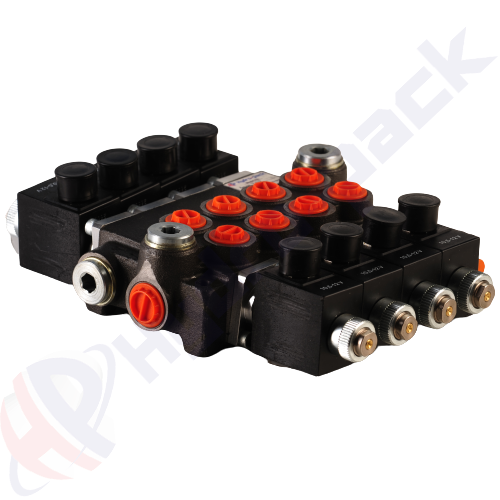

The Z50 Series Solenoid Operated Directional Control Valves deliver a flow rate of 50 liters/min and a max pressure of 315 bar (T: 50 bar, A-B: 300 bar). Featuring a standard open center spool (A spool) with various spool options and available in 1 to 7 spools, these valves offer up to 18 cm³/min leakage at 100 bar. They operate on 12 V or 24 V DC, within a fluid temperature range of -10°C to +80°C, using mineral-based hydraulic oil (10-100 cSt, ideally 46 cSt), and include filtration of 10 to NAS 1638. Ideal for precise solenoid-operated hydraulic control.
