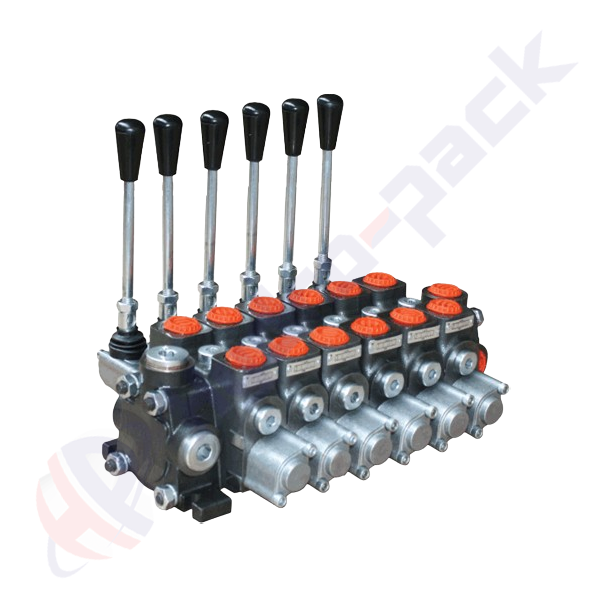

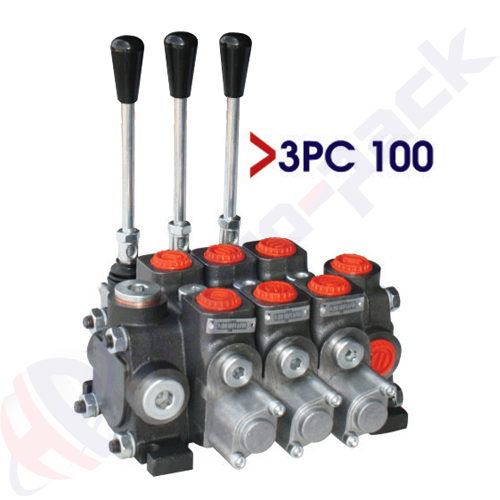

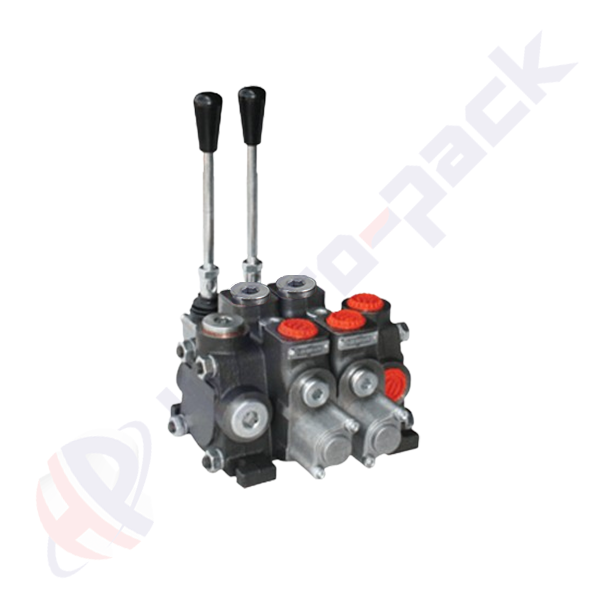

The PC100 Series Sectional Directional Control Valves feature a nominal flow rate of 80 liters/min (max flow 100 liters/min) and a max pressure of 210 bar (T: 50 bar, A-B: 250 bar). With a standard open center spool (A spool) and various spool options, these valves are available in 1 to 8 spools and ensure efficient performance with 18 cm³/min leakage at 120 bar. They operate within a fluid temperature range of -10°C to +80°C, using mineral-based hydraulic oil (10-100 cSt, ideally 46 cSt), and include filtration of 10 to NAS 1638. Ideal for a wide range of hydraulic applications.
