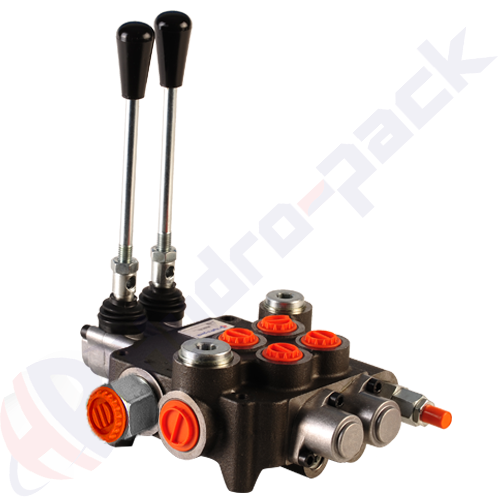

2Z80-1A1A1-GKZ1-C2 Monoblock Control Valve

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components. Z80 series are monoblock directional control valves and manufactured with up to six levers.

Availability: 0 Availability: 0 Brand: Hydro-Pack

Contact Us

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

BADESTNOST 2Z80-A1A1-GKZ1-C2 DIRECTIONAL CONTROL VALVE

2Z80-A1A1-GKZ1, 2Z80 A1A1 GKZ1 C2, 2Z80A1A1GKZ1C2

Directional control valves are one of the core elementsin a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement off fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.

There are grooves and notches on Z80 spools. These grooves and notches provide lubricating oil film, less internal leakage and smooth transaction between working ports.

* Working port threads (A & B) are G 1/2"

* Max. Pressure P: 315 bar, T: 50 bar, A-B: 300 bar


*With Carry Over

Specification
