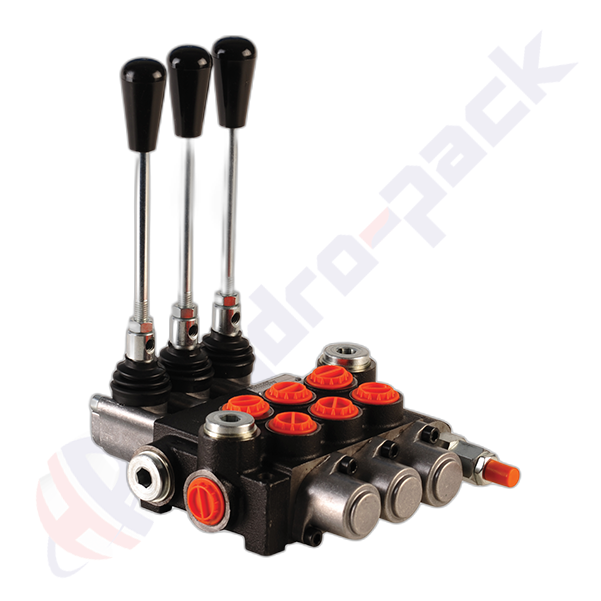

03Z50-A8A8A8-GKZ1 Monoblock Control Valve

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components. Z50 series are monoblock directional control valves and manufactured with up to seven levers.

Availability: 50 Availability: 0 Brand: Hydro-Pack

 127,14

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

BADESTNOST 03Z50-A1A1A1-GKZ1-P DIRECTIONAL CONTROL VALVE

[03Z50-A1A1A1-GKZ1-P, 03Z50 A1A1A1 GKZ1 P, 03Z50A1A1A1GKZ1P BADESTNOST]

Directional control valves are one of the core elementsin a hydraulic system. They help directing the fluid to differentcomponents such as hydraulic cylinders or motors.

There is a part called «spool» inside control valvewhich can be operated mechanically or electrically. The movement of the spoollets oil flow or blocks the oil flow in other words it controls the movement offluid. Hydropack provide monoblock directional control valves with differentcapacities and spool control options.

There are grooves and notches on Z50 spools. Thesegrooves and notches provide lubricating oil film, less internal leakage andsmooth transaction between working ports.

* Working port threads (A & B) are G 3/8"

* Max. Pressure P: 315 bar, T: 50 bar, A-B: 300 bar

Specification

Document

Technical Catalogue Catalogue.pdf
