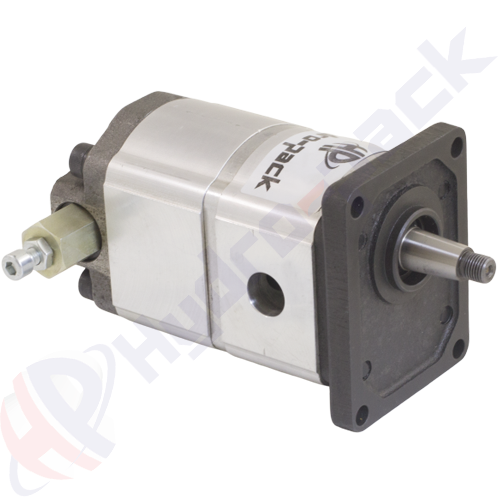

22C4.5/16X815RG Group 20 High-Low Pump

Hydraulic pumps convert mechanical energy into hydraulic energy. A hi-lo circuit with two pumps allows systems to use high flow at low pressure for fast movement, and low flow at high pressure for clamping or feeding.

Availability: 9 Availability: 0 Brand: Hydro-Pack

 299,63

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

22C4.5/16X815RG Hydraulic High-Low Pump

22C4.5/16X815RG

During rapid traverse, both pumps supply the system. When pressure rises during clamping or feed, the large-volume main pump unloads and the small pump maintains pressure. These gear pumps offer the advantage of requiring lower power of the motor.

* Rotation is clockwise from shaft view.

*Displacement: 4.5 + 16 cc/rev.

*Unloading valve opens at 65-73 bar.

*Ports are Gas threaded ports.

Specification

Document

Technical Catalogue Catalogue.pdf
