P40-A1-MKZ1 Monoblock Control Valve

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components. P40 series are monoblock directional control valves and manufactured with up to seven levers.

Availability: 0 Availability: 0 Brand: Hydro-Pack

 56,16

In order to see freight cost, you need to register, complete your profile with address information and add the item to your shopping cart.

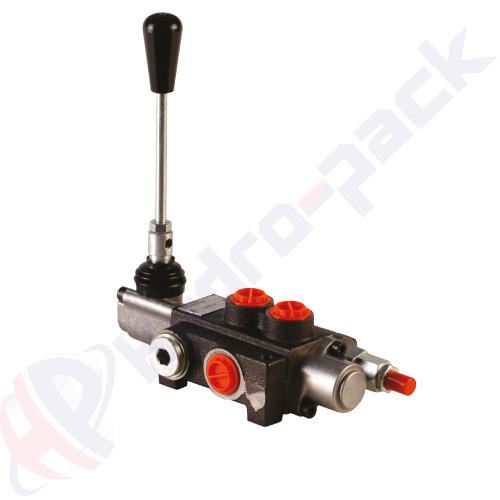

BADESTNOST P40-A1-MKZ1 DIRECTIONAL CONTROL VALVE

[P40 A1 GKY1, P40-A1-MKZ1, BADESTNOST]

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.

There are grooves and notches on P40 spools. These grooves and notches provide lubricating oil film, less internal leakage and smooth transaction between working ports.

* Working port threads (A & B) are M18X1.5"

* Max. Pressure P: 315 bar, T: 50 bar, A-B: 300 bar



*Please review the catalog for spool types/controls and other details.
